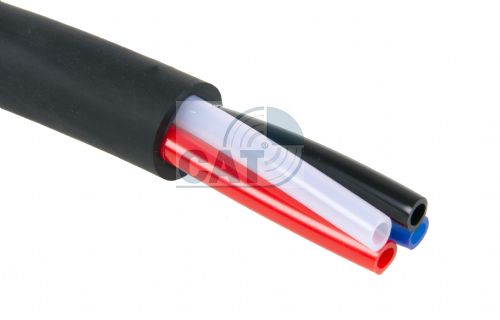

Nylon Multi Tube PA12 PHL 4 - 10mm Od

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

For full list of tube colours, please see PA12 PHL Nylon Multi Tube Colour List in Datasheets section.

Technical Details

Materials:
Inner Tubes:	Polyamide 12 PHL
Outer Sheath:	Black PVC


OD	ID	Working Pressure
4mm	2.7mm	25 bar
6mm	4mm	26 bar
8mm	6mm	19 bar


Number
of Tubes	Colours
3	BS-R-T

4	BS-N-R-T

7	A-BS-G-N-R-T-V

12	A-AR-AS-B-BS-G-N-R-S-T-V-VL

19	A-AM-AR-AS-B-BL-BS-G-GM-N-
	R-RM-RT-S-T-V-VC-VL-VM

Datasheets

Nylon Multi Tube PA12 PHL 4 - 10mm Od datasheet

PA 12 PHL Multi Tube

MTPA6x8x12

PA12 PHL Nylon Multi Tube Colour List

Prices (Click quantity for more availability info)

OD	ID	No, of Tubes	Length	Order Code	Available	Each
4mm	2.7mm	3	100m	145901	0	£217.85
4mm	2.7mm	4	25m	145902	0	£71.17
-	-	-	50m	145903	0	£142.35
-	-	-	100m	145904	0	£284.68
4mm	2.7mm	7	25m	145905	0	£113.48
-	-	-	50m	145906	0	£226.97
-	-	-	100m	145907	0	£453.95
4mm	2.7mm	12	25m	145908	0	£198.90
-	-	-	50m	145909	0	£397.80
-	-	-	100m	145910	0	£795.60
6mm	4mm	4	25m	145911	0	£145.37
-	-	-	50m	145912	1	£290.73
-	-	-	100m	145913	0	£581.47
6mm	4mm	7	25m	145914	1	£218.33
-	-	-	50m	145915	0	£436.68
-	-	-	100m	145916	0	£873.37
6mm	4mm	12	25m	145917	0	£374.95
-	-	-	50m	145918	0	£749.92
-	-	-	100m	145919	0	£1,499.83
6mm	4mm	19	50m	145920	0	£1,830.73
8mm	6mm	3	100m	145921	0	£475.80
8mm	6mm	4	50m	145922	0	£304.05
8mm	6mm	7	50m	145923	0	£575.13
8mm	6mm	12	50m	145924	2	£1,011.07

(All Prices Exclude VAT)
